Custom Steel Frame Workshops | Engineered by Leading Steel Construction Company for Industrial & Commercial Excellence
As a trusted steel construction company, we specialize in steel frame workshop solutions designed to meet the rigorous demands of modern industrial, commercial, and logistics operations. Our build steel building systems leverage modular engineering to deliver adaptable, high-performance structures for diverse applications:
Heavy-duty metal steel buildings frameworks for machinery assembly lines, tool storage, and production floors—engineered to support dynamic loads (e.g., overhead cranes up to 20 tons) with minimal vibration transmission.
Rapid-install steel frame workshop kits for distribution centers, cold storage facilities, and e-commerce fulfillment hubs, featuring clear span designs (up to 60m) and high ceiling heights (12-18m) to maximize vertical storage.
Sleek, open-concept build metal buildingworkshops for showrooms, studios, and co-working hubs, combining structural flexibility with customizable facades to align with brand aesthetics.
Corrosion-resistant steel for buildingframeworks for farm equipment repair bays, livestock processing units, and crop storage sheds—galvanized to withstand animal feed acids and harsh weather.
From small steel warehouse construction projects to large-scal heavy steel construction installations, our steel frame workshop systems adapt to your site footprint, workflow needs, and budget constraints.
| Standard | Process Details | Key Technologies |
|---|---|---|
| Design & Engineering | 3D BIM modeling with Tekla Structures; load analysis using Autodesk Robot (incorporating equipment weight, wind, and seismic data). | Cloud-based collaboration for real-time client feedback; ergonomic layout optimization. |
| Material Prep | Sourcing ASTM A992/A572-65 steel; laser cutting (±0.2mm precision) with CNC machines. | Fiber lasers for thin sheets (1-12mm); plasma cutters for thick plates (1-25mm). |
| Steel Frame Workshop Fabrication | Roll-forming steel sections (C/Z purlins, rafters, columns) to custom radii; automated welding for primary/secondary frames. | Press brakes (1,200-ton capacity); 5-axis CNC drills for bolt hole alignment (±0.1mm). |
| Module Assembly | Pre-assembled workshop units (walls, roofs, mezzanines) with integrated utilities (electrical, HVAC pre-routing). | Laser-guided alignment systems for module connections (±0.05mm tolerance). |
| Finishing | Prime/paint coatings (250μm thickness) or hot-dip galvanizing (850g/m²); insulation (polyisocyanurate foam) for thermal efficiency. | Powder coating lines for color consistency; spray-applied fireproofing (2-hour rating). |
| Final Inspection | Dimensional checks (CMM machines); load testing up to 1.5x design capacity (simulating equipment loads). | Third-party SGS audits; RFID tags for material traceability from mill to site. |
In steel frame workshop projects, structural stability is non-negotiable—especially for heavy machinery support or large-span warehouses. Our welding processes ensure metal steel buildings meet the highest safety standards:

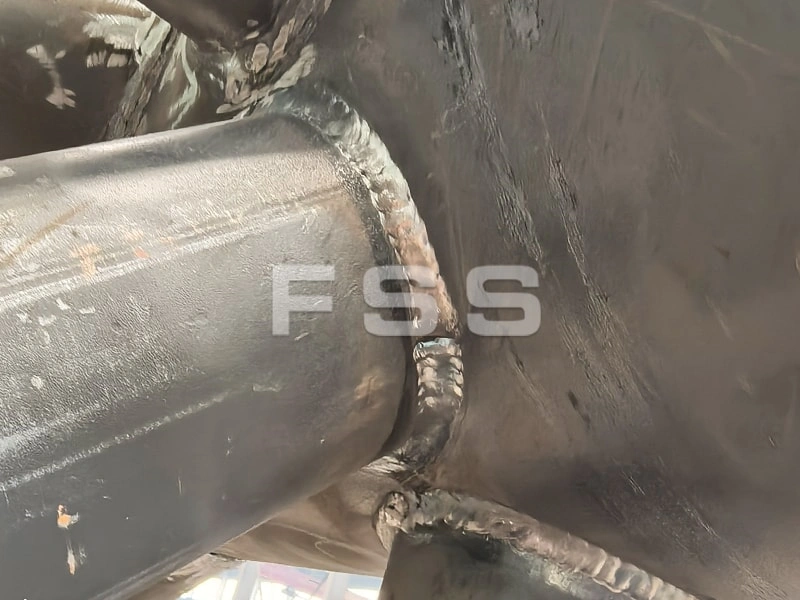

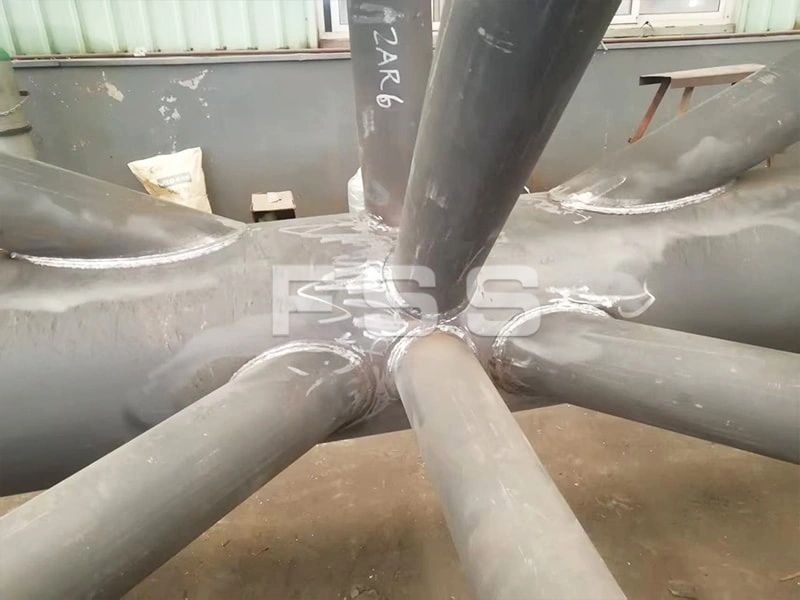

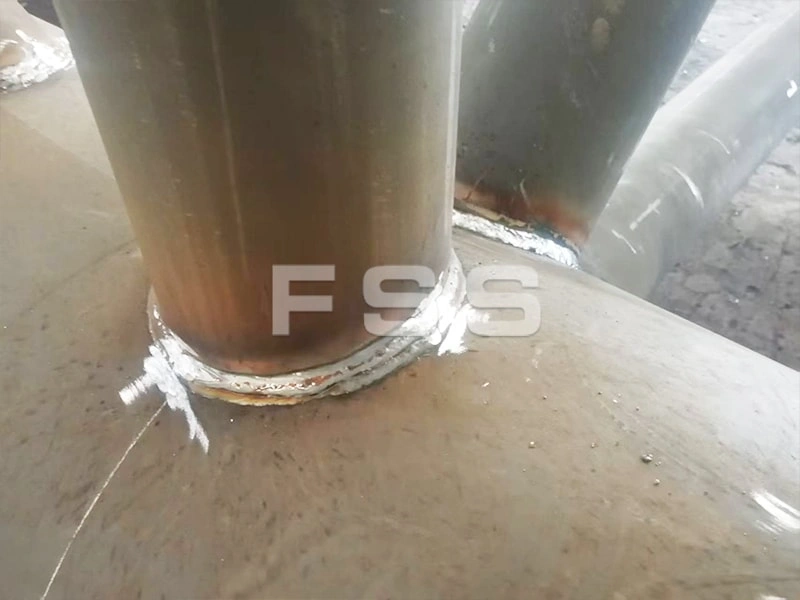

Advanced Welding for Workshop Frames
Primary Frames: For industrial workshops with overhead cranes, we use submerged arc welding (SAW) with ER70S-6 filler metal to achieve full-penetration welds (thickness up to 25mm), eliminating stress points in heavy steel construction.
Secondary Frames: Lightweight purlins and girts undergo MIG welding with pulsed current to reduce spatter and distortion—critical for build metal building workshops with tight tolerance requirements (e.g., equipment installation).
Critical Joints: Welds at column-to-foundation connections, crane runway supports, and roof trusses receive post-weld heat treatment (PWHT) to relieve stress, followed by galvanizing or epoxy coating to match base metal durability.
Non-Destructive Testing (NDT):
X-Ray/UT: For high-load joints (e.g., crane supports), digital radiography (DR) detects 0.1mm cracks; phased-array UT identifies internal flaws in thick sections (up to 300mm).
Visual Checks: AWS-certified inspectors use 10x magnifiers to reject welds with undercutting >0.5mm or porosity >1mm.
Dimensional Accuracy: Laser trackers measure frame alignment (±0.05mm), ensuring modules fit seamlessly on-site—reducing steel warehouse construction rework by 20%.
Example: Delivered a 150,000ft²steel frame workshop for an automotive parts manufacturer—weld accuracy of 0.2mm, validated by SGS, enabling 2-week on-site assembly of heavy machinery bays.
| Standard | Protocol | Compliance |
|---|---|---|
| Material Certification | Sourcing from ISO 9001-certified mills (ArcelorMittal, Nippon Steel). | Mill Test Reports (MTRs); alloy verification via spectroscopy. |
| Frame Welding | AWS D1.1/D1.8 standards; 100% visual + NDT (X-ray/UT). | Welder qualifications per AWS QC7; defect rejection rate <0.3%. |
| Dimensional Accuracy | CMM machines (0.02mm resolution); laser scanning for large assemblies. | Tolerances within ±1mm of design; 99.5% pass rate in client inspections. |
| Coatings | Hot-dip galvanizing (ASTM A123) or powder coating (250μm). | Salt spray test (ISO 9227) ≥1500 hours; adhesion test ≥5MPa. |
| Certifications | ISO 9001, CE, ASME BPVC Section IX; OSHA-compliant safety protocols. | Annual audits by TÜV/BV; green manufacturing (90% scrap recycling). |
Example: Completed a heavy steel construction project for a 500-ton industrial press workshop—zero weld defects, 3-week early delivery.
Modular Shipping: Disassembled steel frame workshop modules (max 12m length) packed in VCI-wrapped crates—protecting frames during transit.
Global Logistics: Partnered with Maersk/COSCO for oversized cargo; SPMT trailers enable door-to-door delivery of steel for building workshops (handling 1,000+ ton shipments).
